The Fire Alarm Panel: The Critical Core of Your Building’s Safety System

In any building, from a small office to a large industrial complex, safety is paramount. Among the many systems designed to protect occupants and property, the fire alarm system stands out as one of the most vital. And at the very heart of every effective fire alarm system lies a crucial component: the Fire Alarm Panel.

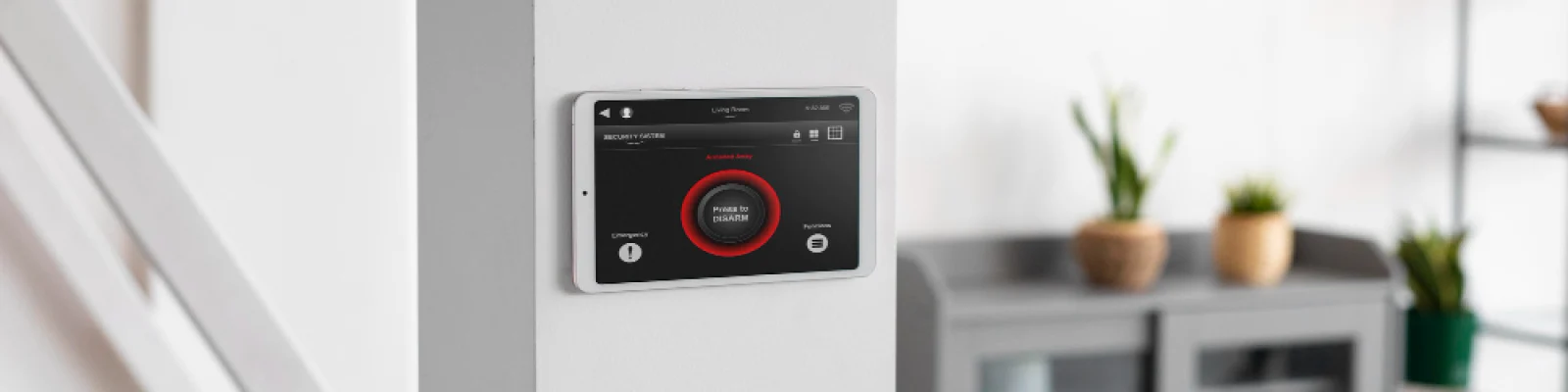

Often seen as just a box on the wall with some lights and buttons, the fire alarm panel is far more than that. It's the central command center, the brain that monitors your building for signs of fire, processes critical information, and triggers the necessary responses to alert occupants and authorities. Ignoring its importance or failing to ensure it's functioning optimally is a risk no responsible building owner or manager should take.

At Pronto MS, we understand the critical role the fire alarm panel plays in your overall safety strategy. We specialize in ensuring these vital systems are correctly specified, installed, maintained, and monitored.

What Exactly IS a Fire Alarm Panel?

Simply put, a Fire Alarm Panel, also known as a Fire Alarm Control Panel (FACP) or Fire Alarm Control Unit (FACU), is the central hub of a fire alarm system. It acts as the intermediary between the system's detection devices (like smoke detectors and heat sensors) and its notification appliances (like horns, strobes, and voice evacuation systems).

Its primary functions include:

1. Receiving Signals: It constantly monitors input signals from various initiating devices placed throughout the building.
2. Processing Information: Upon receiving a signal indicating a potential fire (e.g., smoke detected, manual pull station activated), the panel processes this information. It verifies the signal and determines the appropriate response based on its programming.
3. Initiating Alarms: If a fire condition is confirmed, the panel activates the building's notification appliances to alert occupants to evacuate.
4. Communicating with Authorities: Many modern panels automatically transmit signals to a central monitoring station or the fire department, ensuring a rapid professional response.
5. System Status Monitoring: The panel displays the operational status of the entire fire alarm system, indicating normal operation, alarms, troubles (faults or malfunctions), and supervisory conditions (like a valve being closed on a sprinkler system).

Why is the Fire Alarm Panel So Crucial?

The importance of a well-functioning fire alarm panel cannot be overstated. It is essential for:

• Life Safety: The most critical function is to provide early warning to occupants, giving them precious time to evacuate safely before conditions become untenable. A delay caused by a malfunctioning panel can have catastrophic consequences.
• Property Protection: Rapid detection and notification allow for quicker intervention by fire services, potentially limiting damage to the building and its contents.
• Legal Compliance: Building codes and regulations (such as NFPA standards in many regions) mandate the installation and proper maintenance of fire alarm systems, with the panel being a key component. Non-compliance can result in significant fines, legal liabilities, and insurance issues.
• Business Continuity: A fire can halt business operations for extended periods. A functioning system helps minimize damage and downtime.
• Emergency Response Coordination: By pinpointing the location of a potential issue, modern addressable panels allow first responders to quickly identify the source of the alarm, enabling a more efficient and targeted response.

Key Components Connected to the Panel

The Fire Alarm Panel doesn't work in isolation. It's the conductor of an orchestra of devices:

• Initiating Devices: These are the "eyes and ears" of the system. They detect the fire or are manually activated. Examples include:
  • Smoke Detectors (ionization, photoelectric, aspiration)
  • Heat Detectors (fixed temperature, rate-of-rise)
  • Manual Pull Stations
  • Sprinkler System Water Flow Switches and Valve Supervisory Switches
  • Carbon Monoxide Detectors (often integrated)
• Notification Appliances: These are the devices that alert people. Examples include:
  • Horns and Sirens
  • Strobes (flashing lights, crucial for the hearing impaired)
  • Speakers (for voice evacuation systems)
  • Visual Indicators (LEDs on detectors)
• Power Supplies: Every system requires a primary power source (utility power) and a reliable backup power source (batteries) to ensure operation during a power outage. The panel manages the charging and monitoring of these supplies.
• Ancillary Devices: These can include relays to shut down HVAC systems, unlock doors, or activate smoke control systems.
• Communicators: Devices that transmit alarm signals to a remote monitoring station or directly to the fire department via phone lines, cellular networks, or IP connections.

Types of Fire Alarm Panels: Understanding the Differences

Fire alarm panels have evolved significantly over the years. Understanding the main types is important:

• Conventional Fire Alarm Panels: These are older, simpler systems. Initiating devices are wired in zones. When a device activates in a zone, the panel indicates that the zone is in alarm, but it cannot identify the specific device within that zone. This makes pinpointing the exact location of a fire more challenging, especially in larger buildings with multiple devices per zone. They are generally less expensive but offer less flexibility and diagnostic capability.
• Addressable Fire Alarm Panels: These are the modern standard. Each initiating device and often each notification appliance has a unique address. The panel can communicate with each device individually, knowing its exact location and status. This provides much faster and more precise identification of the alarm source, simplifies maintenance by pinpointing faulty devices, and allows for more complex system programming, such as cause-and-effect relationships (e.g., smoke in one area triggers specific actions elsewhere).
• Hybrid Panels: These systems combine features of both conventional and addressable technology, often allowing conventional zones to be connected to an addressable system, which can be useful for upgrading existing systems incrementally.
• Wireless Systems: While the panel itself is usually wired, wireless detectors and notification appliances are becoming more common, communicating with the panel via radio frequency. This offers installation flexibility, especially in challenging environments or existing structures where running wires is difficult.

For most new installations and significant upgrades today, addressable systems are the preferred choice due to their enhanced features, speed, and diagnostic capabilities.

How a Fire Alarm Panel Responds to an Event

Let's trace the path of an alarm:

1. Detection: A smoke detector senses smoke, or a manual pull station is activated.
2. Signal Transmission: The activated device sends a signal to the Fire Alarm Panel. In an addressable system, this signal includes the unique address of the device.
3. Panel Processing: The panel receives the signal. It analyzes the type of signal and its location. It checks its programming to determine the required response.
4. Alarm Activation: The panel activates the appropriate notification appliances (horns, strobes) throughout the building or in specific zones as programmed.
5. Communication: The panel sends a signal to the remote monitoring station (if connected). This station then contacts the fire department and designated personnel.
6. System Status Update: The panel's display and indicators update to show the alarm condition, its location, and the status of other system components.

This entire process, from detection to notification and communication, happens within seconds, highlighting the critical speed and reliability required of the panel.

Beyond the Basics: Modern Panel Features

Today's fire alarm panels offer features that go far beyond simple detection and notification:

• Remote Monitoring and Control: Panels can be connected via IP or cellular, allowing for remote monitoring, system status checks, and even some level of remote programming or diagnostics.
• Integration Capabilities: Panels can integrate with other building systems, such as HVAC (to shut down fans and prevent smoke spread), security systems, and elevator controls (to recall elevators to the ground floor).
• Voice Evacuation: More sophisticated systems use voice messages broadcast through speakers to guide occupants during evacuation, providing clear instructions rather than just an audible alert.
• Detailed Event Logging: Panels maintain a history of all system events (alarms, troubles, supervisory signals), which is invaluable for maintenance, troubleshooting, and post-incident analysis.
• User-Friendly Interfaces: While complex internally, modern panels often feature touchscreens and intuitive interfaces to make interaction and status checks easier for trained personnel.

Installation, Maintenance, and Compliance: Why Professional Expertise is Non-Negotiable

Given the life-critical nature of fire alarm systems, their installation, programming, and maintenance must be handled by qualified professionals.

• Installation: Proper installation ensures devices are correctly placed, wired, and programmed according to building codes, manufacturer specifications, and the specific needs of the building's layout and occupancy. The panel is the central point of this complex network.
• Maintenance and Inspection: Regular inspection, testing, and maintenance (ITM) are not only mandated by codes (like NFPA 72) but are absolutely essential to ensure the system, including the Fire Alarm Panel, remains fully functional. Dust, power surges, aging components, or even minor wiring issues can compromise system integrity. Regular checks identify these problems before they lead to system failure during an emergency.

Choosing a reliable provider for these services is as important as choosing the right system components.

Choosing the Right Fire Alarm Panel and Partner

Selecting the appropriate fire alarm system and panel depends on various factors:

• Building size and occupancy type
• Specific risks present
• Local building codes and regulations
• Budget
• Desired features and scalability

Making the wrong choice can lead to inadequate protection, non-compliance, or unnecessary costs. This is where expert consultation is invaluable.

Pronto MS: Your Partner in Fire Safety, Starting with the Panel

At Pronto MS, we don't just sell equipment; we provide comprehensive fire safety solutions. We work with you to assess your specific needs, recommend the most suitable Fire Alarm Panel and system type, handle professional installation, and provide ongoing inspection, testing, and maintenance services to ensure your system is always ready to perform when needed most.

From helping you navigate the complexities of addressable vs. conventional systems to ensuring every detector and horn is correctly linked back to the panel, our certified technicians have the expertise to protect your property and the lives within it. Your Fire Alarm Panel is too important to leave to chance.

Learn more about how we can help secure your premises with cutting-edge fire detection and alarm systems, centered around reliable and compliant fire alarm panels. Visit our dedicated service page for more details on our Fire Alarm Panel services.
Investing in a robust, well-maintained fire alarm system, with a dependable Fire Alarm Panel at its core, is an investment in safety, security, and peace of mind. Don't wait until it's too late. Contact Pronto MS today.
